CHINA TOP LOADING EQUIPMENTS

Lianyungang Loadarm Industry Co., Ltd. (LICO) specialize in the design, manufacture, sales and maintenance of fluid loading or unloading equipment, auto-loading control system, skid mounted, internal floating roof, folding stair, platform etc. LICO is located in Lianyungang City, where is an beautiful tourist and port city in China.

SERVICE GUIDE CENTER

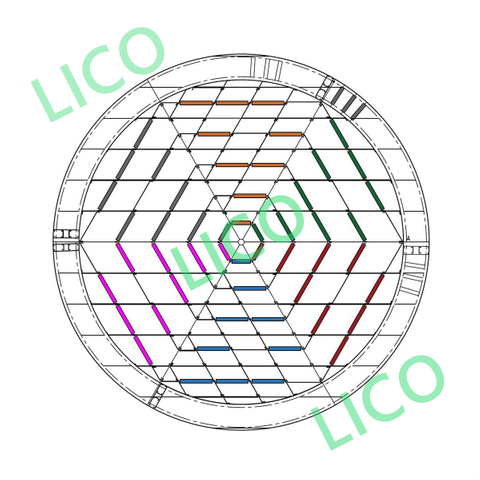

  • What’s the composition of pontoons type internal floating roof?

    1 Pontoons
    The pontoon use seamless aluminum pipe which is extrusion molding to make sure its tightness. The design buoyancy is twice over the total weight of the internal floating roof.

    2 combined skeleton
    The skeleton is made of kinds of aluminum profile. The margin plate designed to immerse into the liquid more than 100mm depth.

    3 Vents
    When the press of the oil gas below the internal floating roof comes to 0.01Kgf/cm2, the vents could open automatically to drain the air and oil gas out. When the internal floating roof descend to the lowest position, the vents also could open automatically.

    4 Manhole
    The manhole is designed to open freely to make sure of the installation and the man could go through conveniently. The round of the manhole is sealed with suitable sealing. The nether frame of the manhole should immerse into the liquid more than 100mm depth. The airtightness is very good.

    5 Support Leg
    The support leg is installed under the internal floating roof to make installation and maintaining convenient. The leg is made of seamless aluminum pipe which is placed equality under the internal floating roof. Their load capacity is more than the critical pressure of the internal floating roof and its height could be adjusted freely according to the structure of the tank bottom.

    6 Sealing
    Using which kind of sealing is according to the liquid handled in the tank or the different welding line of the tank wall. Tongue shape and balloon shape sealing are the main style of sealing tape.

    7 Oil Gauge
    The oil gauge is designed and manufactured according to the measuring of the tank. The nether of the oil gauge should immerse into the liquid more than 100mm depth. The upper is the flexible rubber sealing.

    8 Anti-rotation Device
    The anti-rotation device could control the waggle or swing of the the internal floating roof upon the liquid in case the internal floating roof has big rotation and center position shift.

    9 Anti-static Device
    The anti-static device is to output the static from the internal floating roof to the earth to prevent the fire accident due to the static on the internal floating roof which is caused by the loading or unloading of the liquid in the tank.The ground resistance is less than 10Ω.
  • What’s the most important parts for loading arms?

    Swivel joints are precision components for the connection between stationary pipes (or hoses) and rotating parts of machines. The function is the transport or gaseous, liquid or semi-solid substances from and to machines.
  • What’s loading arm?

    There are three kinds of loading arms: Marine loading arm, truck loading arm, rail car loading arm. A loading arm permits the transfer of liquid or liquefied gas from one tank to another through an articulated pipe system considering or rigid piping and swivel joints to obtain flexibility. Transfer to or from a truck transported tank ot rail transported tank requires a top loading arm or a bottom loading arm.
    A Marine loading arm, also known as a mechanical loading arm, loading arm, or MLA is a mechanical arm considering of articulated steel pipes that connect a tankship such as an oil tanker or chemical tanker to a cargo terminal.
  • What’s Coriolis effect principle or the mass flow meter working principle?

    Coriolis effect is a description of the deviation of a linear motion particle in a rotating system due to inertia relative to the linear motion of the rotating system.
    The mass flow meter is a typical application of Coriolis Effect. It allows the measured fluid to pass through a measuring tube in vibration. The flow of fluid in the tube is equivalent to linear motion. The vibration of the measuring tube will produce an angular velocity. Because the vibration is driven by an applied electromagnetic field, it has a fixed frequency, so the Coriolis effect received by the fluid in the tube is only related to its mass and speed of motion, and the product of mass and speed of motion, that is, the flow velocity is the mass flow rate that needs to be measured, so by measuring the Coriolis effect of the fluid in the tube its mass flow can be obtained.

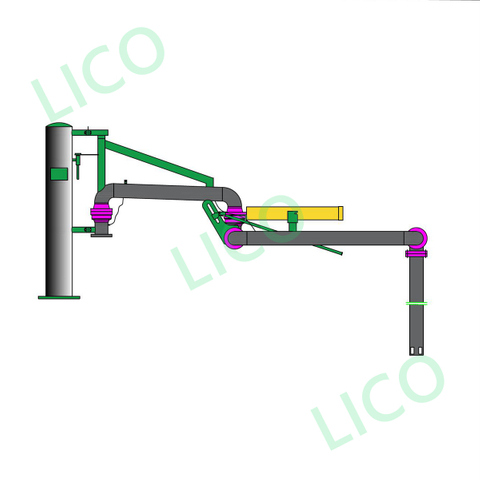

  • How To Choose The Model For Loading Arm?

    Top Loading rail cars and trucks continue to provide an efficient and cost effective method to load and unload in many situations.

    A loading system should have sufficient horizontal range to reach the farthest compartment without re-spotting the vehicle. Sufficient vertical movement and drop-pipe lengths to service vehicles of varying heights is also necessary. A properly designed top loading system can provide protection and achieve this requirement. Top loading arms can also be used for tight-fill, vapor recovery, marine and other applications when used with specially designed and engineered components, such as vapor plates, tapered hatch plugs, and inflatable hatch seals.

    Special top loading arm designs can also be supplied with a wide range of valves, fittings, and instrumentation equipment.
